Raw77

RAW77

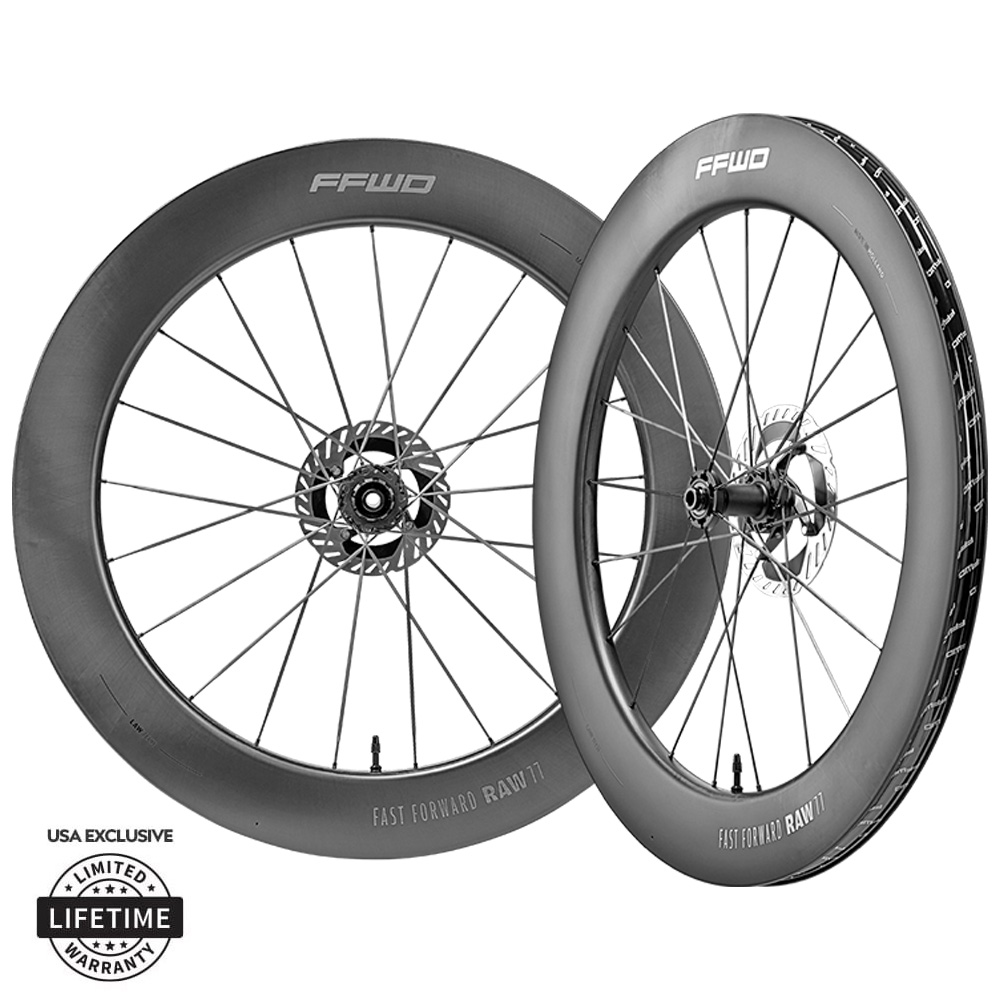

WHAT – 77mm deep hooked tubeless ready disc brake carbon clincher wheel set with carbon bladed spokes, lightweight FFWD Hubs with CeramicSpeed bearings.

WHO –Riders who wish a fast, stable and versatile deeper profile wheel set, ideal for time-trials and triathlons.

IDEAL FOR – Triathlon, time-trials, flats, road and crit racing.

QUICK SPECS

WHAT’S INCLUDED – IN THE BOX

• Front and rear wheels (disc rotors/lockrings/thru axles not included)
• Padded double wheel bag
• Pre-installed 27mm tubeless rim tape
• Pre-installed 90mm tubeless valves

EXTENDED USA LIFETIME WARRANTY

The RAW77 comes with a USA extended lifetime warranty when purchased through ffwdusa.com or a US authorized dealer and a factory 3 year warranty and 5 year crash replacement policy.

OVERVIEW

Elevate Your Triathlon Ride to the Next Level with the new RAW77!

Want to turn heads while leaving the competition behind?  The combination of carbon bladed spokes and 77mm deep carbon rims delivers you light system weight and perfect stiffness which combines aerodynamics and power into speed.

Lighter rims, carbon spokes and CeramicSpeed bearings inside our superb hubs and a stunning slick finish in matt or gloss. RAW is synonymous for performance, maximum efficiency and exclusivity.

The RAW77 features FFWD’s proven LAW Tech aerodynamic profile. LAW is short for ‘Laminar Airflow Wing’ and has been specifically developed to deliver better aerodynamics when using wider tire widths up to 42mm by creating a smooth airflow over the rim and tire interface.

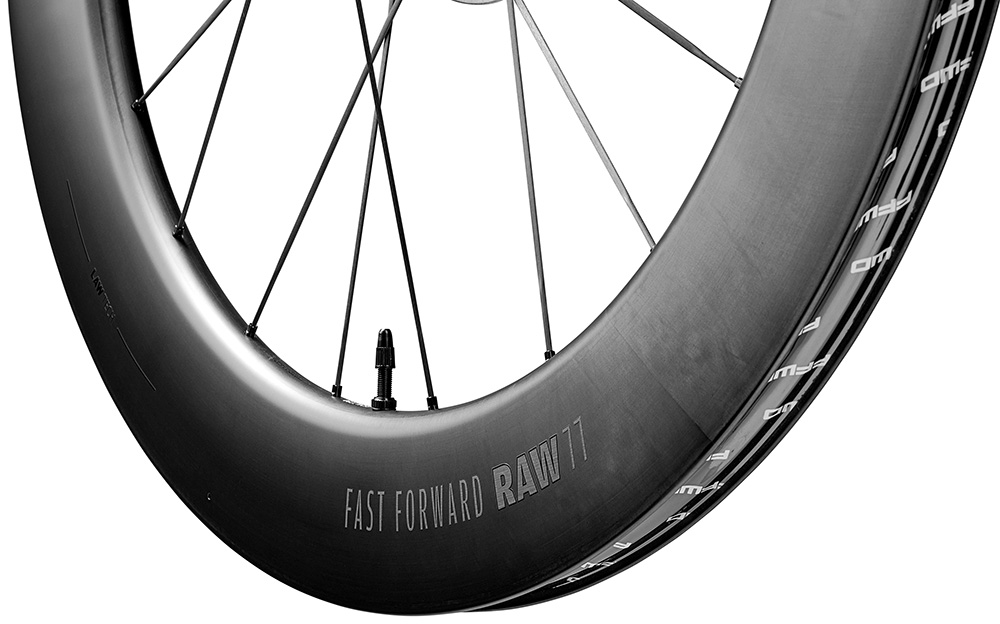

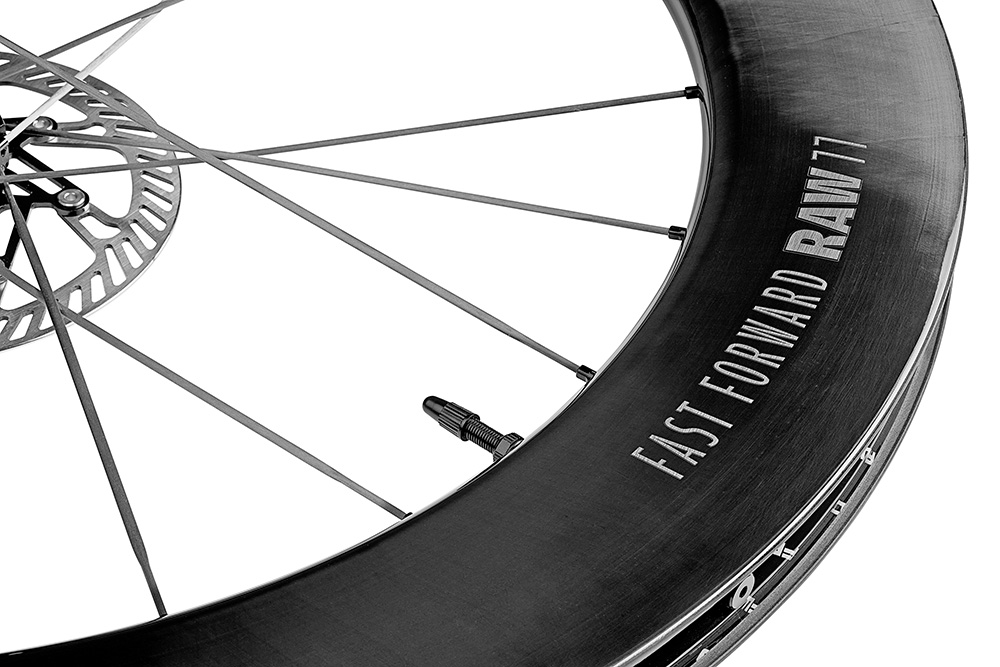

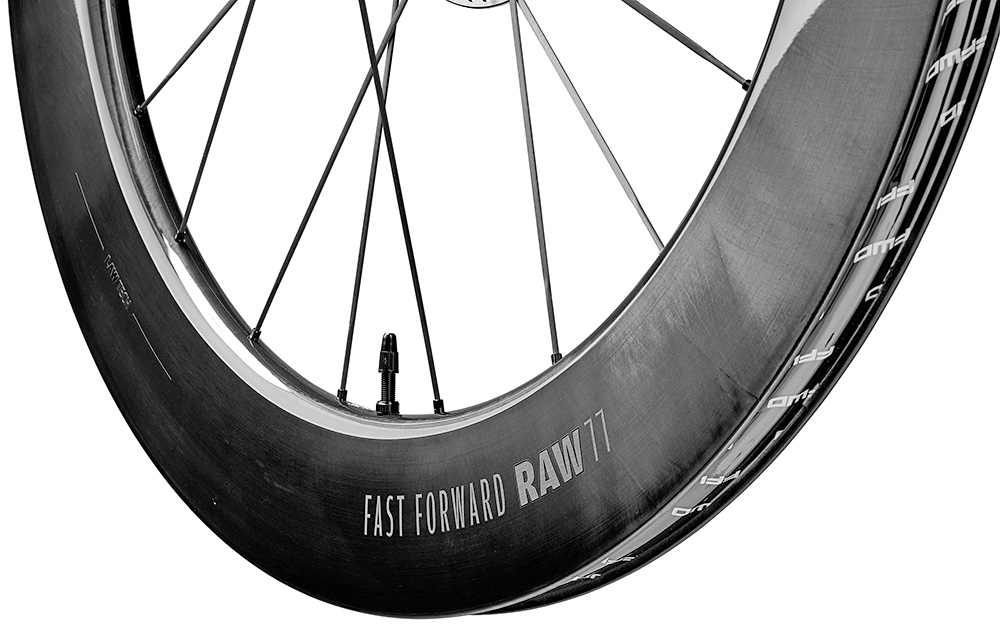

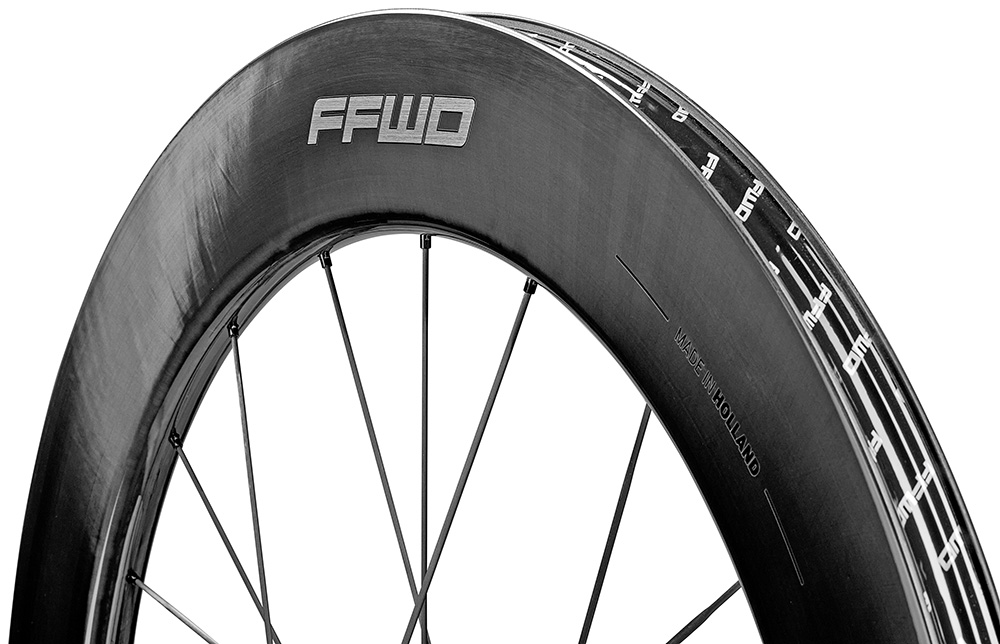

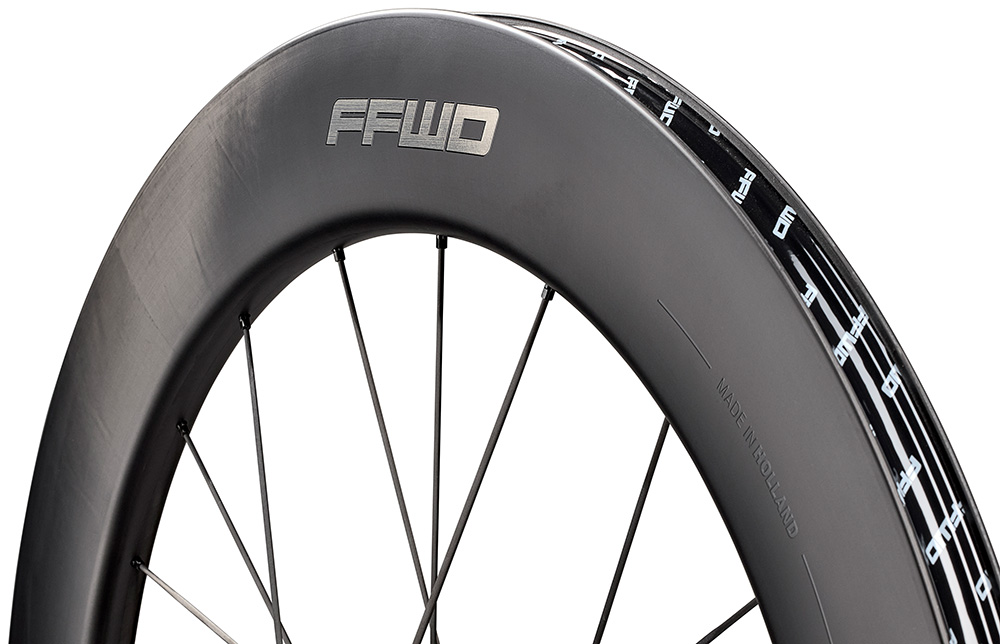

The RAW77 is a 700c hooked tubeless ready carbon clincher rim with a 23mm internal width, 77mm depth and 31mm external width.  Compatible with standard clincher (tubes) and tubeless clincher setups.

Testing multiple layups and setups have led to the optimum combination of stiffness, aerodynamics and weight.

Aerodynamic, Stiff and Lightweight

The combination of carbon bladed spokes, FFWD’s new hub design and 77mm deep carbon rims delivers the perfect stiffness and translates power into speed. Superb stiffness for your best sprint efforts all at a set weight of 1670 grams.

FFWD Hub with CeramicSpeed Inside

Carbon spokes require a special hub design. This level of wheel demands ceramic bearings. For our custom designed hubs FFWD partnered with CeramicSpeed.

The RAW is built with a newly developed and lighter weight FFWD ratchet hub with CeramicSpeed bearings.  Straight pull spokes, center-lock rotor interface, 12mm thru axle hubs (12/100mm, 12/142mm) featuring a 36 tooth ratchet system offering 10 degrees of engagement for quick and crisp shifting and a 17% increase in stiffness.

Components include carbon aero-bladed spokes and Hex 5.5mm internal nipples.

The RAW77 is available in matte or gloss black and with Shimano/SRAM 10-12 speed, SRAM XDR and Campagnolo 11-12 speed freehub options.

For an overview of the complete RAW77 specifications, download the datasheet here.

Fast Forward’s rim technologies and unique artisan wheel building techniques are market-leading and WorldTour tested.  FFWD Wheels are hand built in The Netherlands and have been ridden to victories in the Spring Classics, each Grand Tour and numerous World Championships.

SPECIFICATIONS

• 700c 77mm hooked tubeless ready full carbon clincher
• LAW Tech aerodynamic profile
• UV Protected Decals
• ETRTO 23-622
• Spoke Count: 21H Front/21H Rear
• Lacing Pattern:  2:1
• Hub Option: FFWD CeramicSpeed 36T Ratchet Straight Pull Center Lock 12mm Thru Axle
• Hub Spacing: Front: 12/100mm, Rear: 12/142mm (QR adapters available)
• Components: Carbon Bladed Spokes, HEX 5.5mm Internal Nipples
• Freehub: Shimano/SRAM 10/11spd,  SRAM XDR 12spd, Campagnolo 11/12spd
• Color(s): Matte Black, Gloss Black
• Weight: 1670 grams +/- 5% (set) [Front: 780g / Rear: 890g (+/- 5%)]
• Rim Width Outside: 31mm
• Rim Width Inside: 23mm
• Recommended Tire Width(s): 28mm (Min: 25mm, Max: 42mm)
• Maximum Tire Pressure: 110psi/7.6bar
• Maximum Recommended Rider Weight: 265lbs/120kg
• Accessories: FFWD padded wheelbag, installed tubeless rim tape and valves

Note: Use of 27mm tubeless rim tape is required regardless of standard or tubeless setup.

• 700c 77mm hooked tubeless ready full carbon clincher
• LAW Tech aerodynamic profile
• UV Protected Decals
• ETRTO 23-622
• Spoke Count: 21H Front/21H Rear
• Lacing Pattern:  2:1
• Hub Option: FFWD CeramicSpeed 36T Ratchet Straight Pull Center Lock 12mm Thru Axle
• Hub Spacing: Front: 12/100mm, Rear: 12/142mm (QR adapters available)
• Components: Carbon Bladed Spokes, HEX 5.5mm Internal Nipples
• Freehub: Shimano/SRAM 10/11spd,  SRAM XDR 12spd, Campagnolo 11/12spd
• Color(s): Matte Black, Gloss Black
• Weight: 1670 grams +/- 5% (set) [Front: 780g / Rear: 890g (+/- 5%)]
• Rim Width Outside: 31mm
• Rim Width Inside: 23mm
• Recommended Tire Width(s): 28mm (Min: 25mm, Max: 42mm)
• Maximum Tire Pressure: 110psi/7.6bar
• Maximum Recommended Rider Weight: 265lbs/120kg
• Accessories: FFWD padded wheelbag, installed tubeless rim tape and valves

Note: Use of 27mm tubeless rim tape is required regardless of standard or tubeless setup.

• LAW Tech Aero Profile
• ECOM™ – Equal Compression Technology
• Hand Built In Holland
